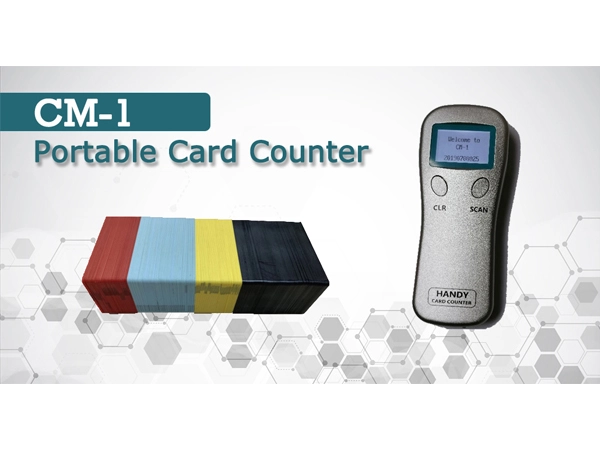

CM-1 is a newly developed handy card counter to count various colored core card. It can work for above 0.45 mm thickness plastic cards including IC card, ID card, Embossing card and compatible for PVC card, PET card, ABS card, Metal card etc.
Equipped with high-speed processor, two high-precision optical sensors and precise logic analysis circuit, it can achieve high-efficiency counting. It can also connect to the computer to upload the counting results and print the data at Excel file. Every card manufacturer and issuer will need it.
| MODEL | CM-1 |
| Card Material | All regular plastic cards (ABS, PVC, PC PET, etc.), paper board cards, metal cards incl. (depending on material and die-cutting burr) |
| Card Thickness | 0.45mm - 1.5mm |
| Manufacturing technique |
|
| Card Color |
|
| Power Supply |
|
| Working Temperature | 10 - 40℃ |
| Working Humidity | 30% -90% |
| Single Counting Capacity | 1 - 500 pcs |
| Maximum Accumulation | 99,999 cards |
| Dimension | L160mm *W66mm*H30mm |
| Net Weight | 240g |
Remarks:
The sensors of optical card counter have different sensitivity to different colors & materials and the work theory of the counter is related to light reflection. Thus, there is no one portable counting device that can count all types of colored core and transparent cards. In order to help you choose the proper card counting device, we recommend you to read following remarks and test results before procurement.
1, For these special cards including black cards, transparent cards, multi-layer cards and some rare cards, pls send sample cards for the test.
2, Multi- layer cards (such as SPS cards): There's a transparent pet/pvc sheet in the middle. This kind of card is complicated. Pls send samples.
Item | Photo | Video | Test Result |
White Core cards |
| Good | |
Red Core cards |
| Good | |
Indigo/ Light Blue Core cards |
| Good | |
Pale/ Dark Green Core cards |
| Good | |
Yellow Core cards |
| Good | |
Black Core cards
|
| Good（Need to test sample cards） | |
Metal cards |
|
| Good (Need to test sample cards) |
Transparent/Semi-transparent |
|
________ | Need to test sample cards |
DI card such as (SPS card,COM,Flex bump Soldiering etc) |
|
---------------- | Need to test sample cards |
Other color cards | ------------- | ----------- | undetermined |
With language switching function;
Intelligent liquid crystal display single/total number, display battery capacity;
The counter will be in standby state for 30 seconds, press "SCAN KEY" to restart;
All aluminum alloy surface, wear-resistant, shock-proof;
The streamlined design ensures that the card counter runs smoothly around the edge of the card, reducing scratches caused by contact with the card surface.
Universal large-capacity battery with strong battery life and the latest TYPE-C charging interface;
The LCD display displays the battery capacity, enabling you to learn the battery information in a timely manner. Charge protection design protects counter, counter does not work while charging.
