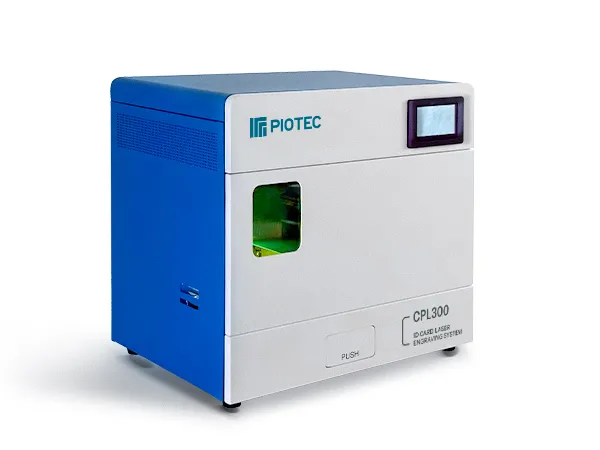

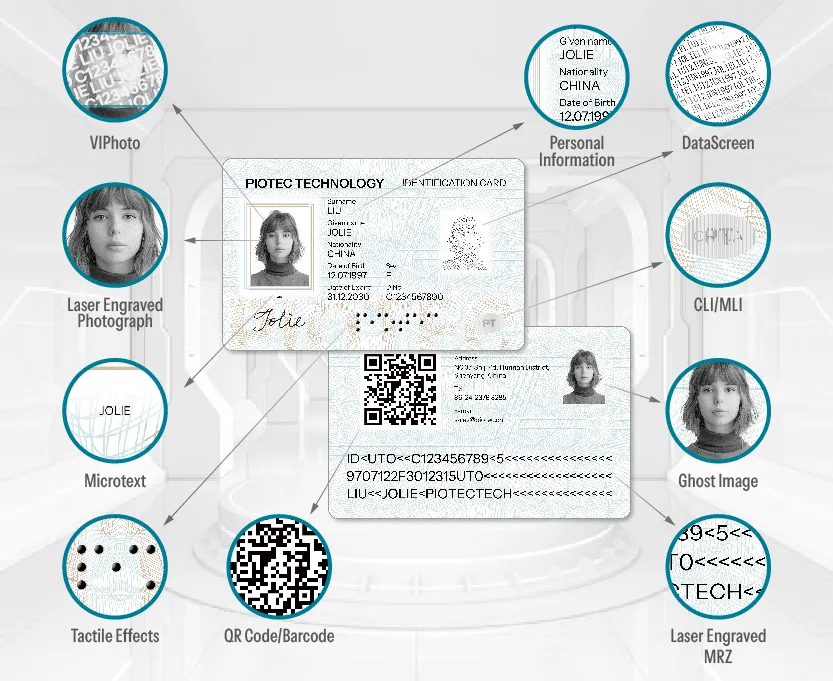

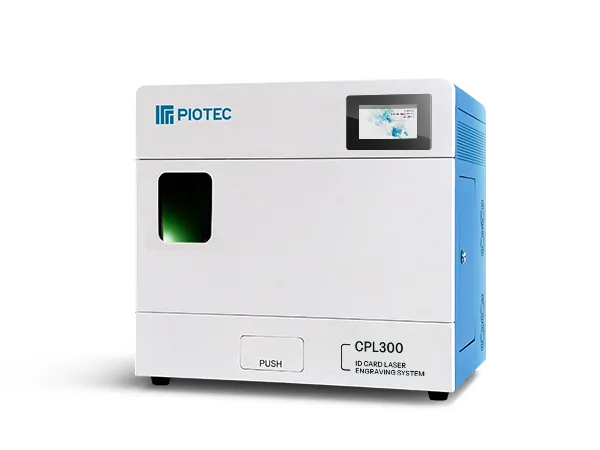

CPL300 ID Card Laser Engraving System developed for high-security requirement, is used for producing anti-counterfeit certificates such as ID Cards, Electronic Driver Licenses, Social Security Cards and Healthcare Insurance Cards. Magnetic strip encoding, contact/contactless chip encoding as well as laser engraving are configured to realize anti-counterfeit technology of personal data,ghost image, micro-text, tactile effects and CLI/MLI.
| Dimension | 600mm（L）×450mm(W)×500mm(H) |
| Weight | 45Kg |
| Power Supply | 220V(-5%～+10%), 50Hz, 800W |
| Noise | ≤50dB |
| Operation Temperature | 15℃-30℃ |
| Operation Humidity | 30%-70% (non-condensing humidity) |
| Application Scope | Supporting various cards (53.98 mm x 85.60 mm) conforming to ISO ID-1/CR-80 standard such as PC、PET、PVC、ABS |

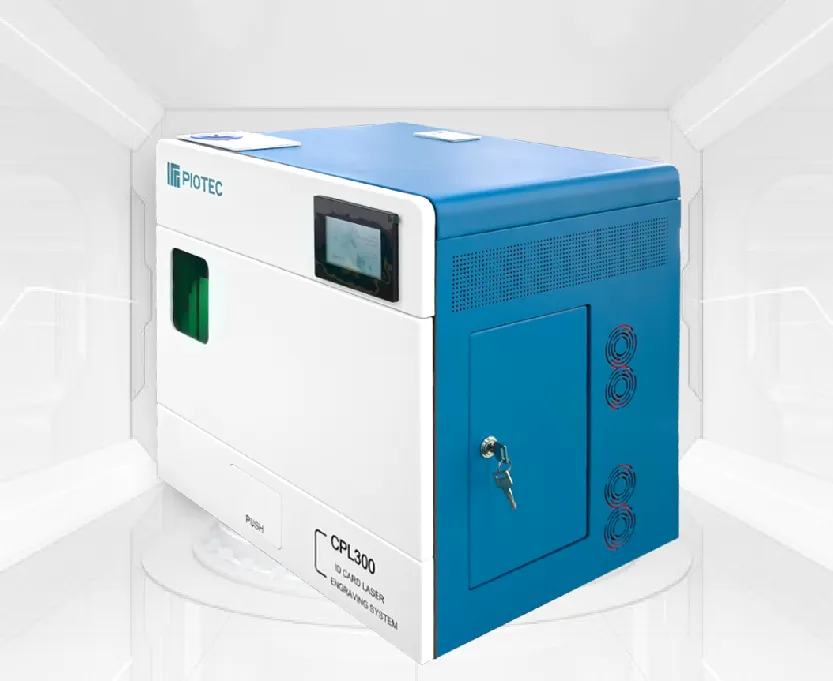

Equipped with 1 input magazine with maximum capacity of 500pcs.
Configure 1 data writing device,Support magnetic stripe, contact, non-contact data writing.
Can realize laser single-sided, double-sided personalized printing.
Equipped with 1 output magazine with maximum capacity of 250 pcs .
Capacity of 50 pcs.
Write magnetic, write IC (contact and non-contact) , MLI/CLI, XY positioning camera.
No need for supplies, all kinds of anti-counterfeiting, information are completed by laser etching.
Support PC, Pet, PVC, ABS and many other isoid -1/CR -80 standard card laser etching.
Physical and electronic security locks protect the card.
Modular structure for flexible configuration based on user needs.
Can achieve the card front or back of the CLI/MLI anti-counterfeiting function.
Contact Piotec for Smart Card Solution
