EDC1000A E-PASSPORT DIE CUTTING AND COLLATING MACHINE can roll types of different materials and various Die-cutting patterns can be cut into sheets of different specifocations through Die-cutting, Lamination,Welding,Cutting,and Stacking Processes.
Can Meet All the Roll Form Material on The Market Die Cutting, Laminating, Welding, CuttingNeeds of Product Solutions.
| Capacity | 1000UPH |
| Application Materials | PC FILM, TPU FILM，ROLL FORM MATERIALS |
| Dimension | 5250×2500×2400mm |
| Weight | 6700kg |
| Power Supply | 220V |
| Noise | ≤65dB |
| Operation Temperature | 23℃±3℃ |
| Operation Humidity | 50±10%rh |
| Compressed Air | pressure：0.6Mpa |
| Communication Interface | None |
1. The air expansion shaft is used to install the material coil, and the material roll installation and disassembly are convenient.
2. In order to ensure that the refueling coil time is less than 2 minutes, it is equipped with 3 air expansion shafts.
3. A single inflated bearing weighs 100kg.
1. In order to ensure the accuracy of the vertical belt direction when the material is running, the tension cache unit is equipped with a set of deviation correction system between runs.
2. Ultrasonic sensors are used to detect the offset of translucent film materials.
1. It can die cut PC material and TPU material of different thickness.
2. Rotary die punching technique.
3. Maximum mold size: 350mm×500mm.
4. Die cutting accuracy: ±0.05mm.
5. Flexible mold replacement, mold change time: ≤30 minutes.
1. Clean the upper and lower surfaces of the die-cut material.
2. The dust and impurities on the upper and lower surfaces of the material are removed by a contact dust removal roller.

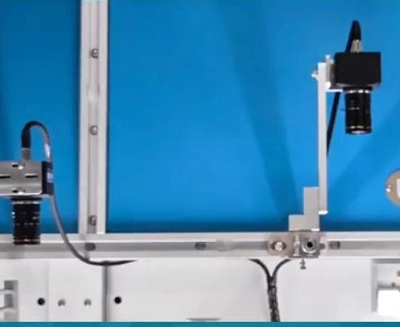

The visual recognition system can accurately identify the position, dimensional accuracy, and die-cutting effect (whether there are burrs, cracks, etc.).
1. It can compound 2 kinds of materials or 3 kinds of materials.
2. With servo control, the compound speed is fast and the precision is high.
1. Ultrasonic welding.
2. Glue 2 or 3 layers at 6 points along the 2 edges of the sheet.
3. Ultrasonic solder joint position and positioning hole can not overlap.
4. Ultrasonic solder joint position is adjustable in longitudinal and transverse.
1. Cut material to specified size,avoid adhesive tape when cutting.
2. With pass/fail sorting function.
3. The receiving box has the function of material sorting.
4. Rejected products are collected into the Rejecting box.
The machine can realize roll die-cutting, lamination, welding, and cutting. It is cost-effective, economical, and easy to operate.
The vision system detects the quality and accuracy of die cutting, lamination, and welding, and feeds the results back to the control system, which automatically completes position adjustment.
The motion mechanism adjusts the feeding speed of each feeding axis in real time based on visual inspection results to achieve high-precision compounding.
