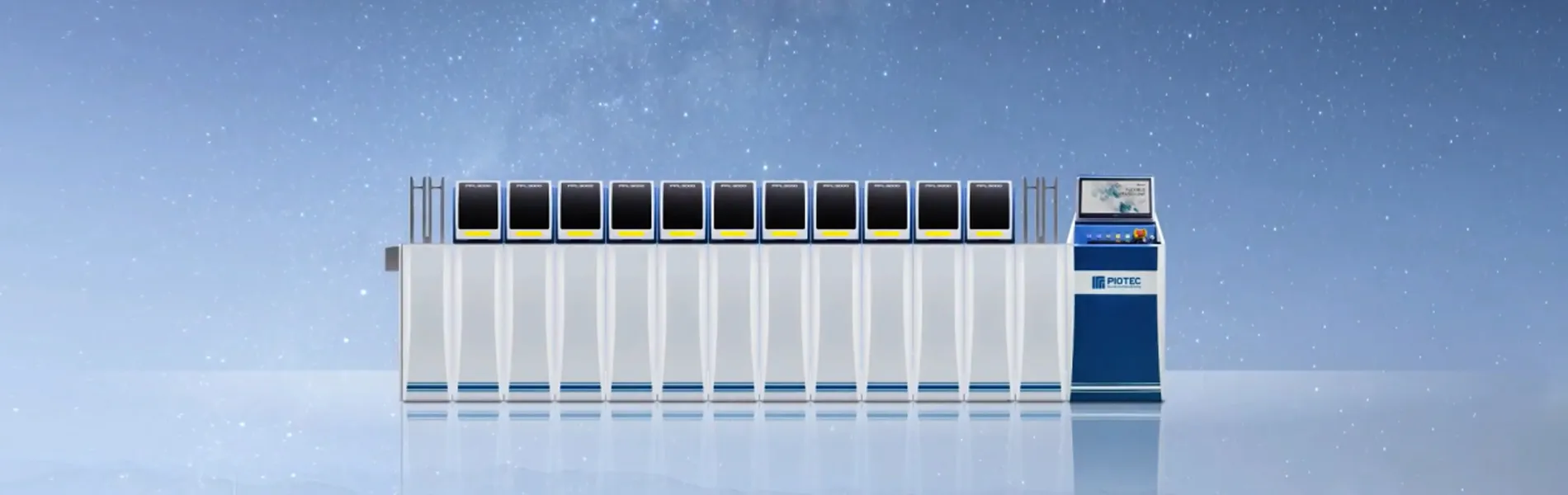

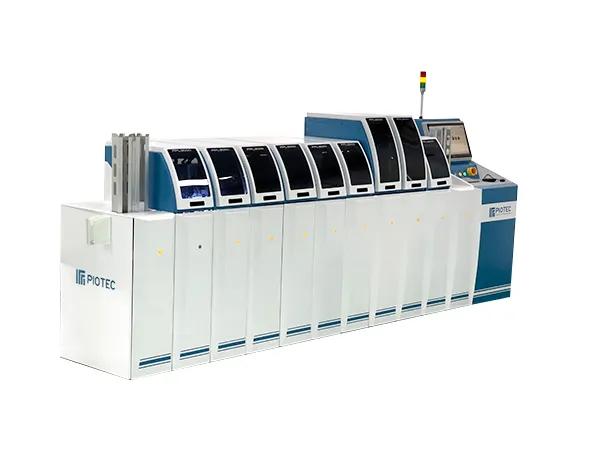

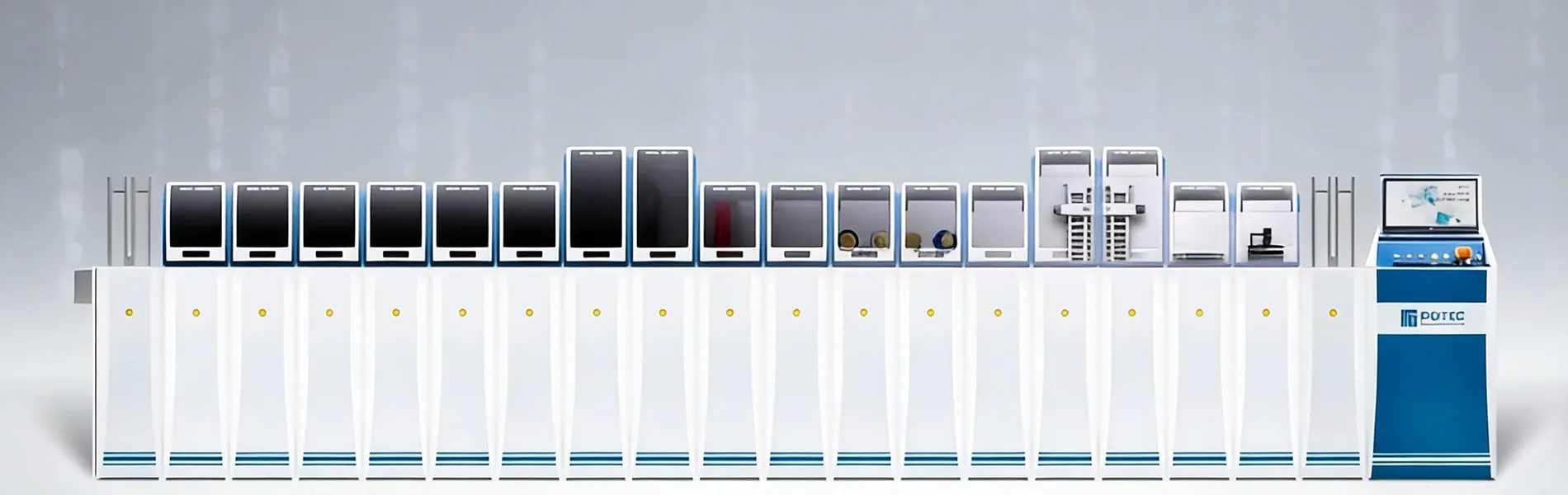

FPL3000 Banking Card Flexible Perso Liner

FPL3000 Banking Card Flexible Perso Liner

To meet the diverse designs of ID card, banking card and other kinds of card application, PIOTEC flexible personalization line FPL3000 was developed. Based on modular design , FPL3000 credit card maker machine can be configured with function modules including magnetic encoding, contact IC encoding, contactless IC encoding, thermal printing, embossing and indenting, topping, DOD inkjet, laser engraving, optical visual verification & contact IC verification & contactless IC verification, the quantity for each module can be decided by customer's need.

Specifications of FPL3000 Banking Card Flexible Perso Liner

parameter
Technical Specification
Dimension4470mm×650mm×1450mmWeight1100Kg
Power Supply220V(-5%~+10%), 50Hz, 5KWNoise≤65dB
Operation Temperature23±3℃Operation Humidity50±10%rh
Main Module Throughput
ModuleconfigurationMAX THROUGHPUT
Magnetic EncodingEquipped with two magnetic heads, one with writing magnetic function and the other with reading function3000 UPH
Contact / Contactless 16 contact Perso stations and 8 contactless Perso stations3000 UPH
DOD Inkjetincluding 1 plasma unit , 1 DOD inkjet
system, and 1 UV curing unit
3000 UPH
Thermal Printing2 Thermal Printing,Reverse printing1500 UPH
Embossing and Indenting3 Embossing  and Indenting ,40 characters, 4-row print1700 UPH


Functions of FPL3000 Banking Card Flexible Perso Liner

parameter

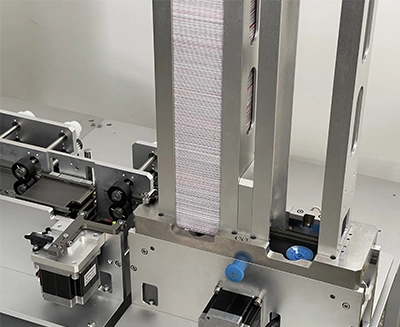

Input Module
Input Module

1. Equipped with 2 sets of card input magazine, with a maximum capacity of 500 cards per magazine.

2. Achieve automatic switching of card magazines, with chip detection function and dual card detection function.

3. Set up a quick dismantling mechanism for easy maintenance.

Magnetic Encoding Module
Magnetic Encoding Module

1. Equipped with two magnetic heads, one with writing magnetic function and the other with reading function, with ISO7811 which can encode track 1, 2, and 3.

2. All common ISO, AAMVA and JIS formats, can be supported. HICO or LOCO can be set up.

Contact/Contactless IC Perso Module
Contact/Contactless IC Perso Module

1. IC module contains 16 contact Perso stations and 8 contactless Perso stations.

2. Equipped with 4 sets of four in one PIOTEC readers for the contact Perso module, Model: PT204PT, supports multiple standard protocols such as ISO7816.

3. Equipped with 2 sets of four in one PIOTEC contactless readers for contactless Perso module,Model: PT1304N, supports multiple protocols such as ISO14443A/B, MIFARE, ISO/IEC 15693, Felica, etc.


Clean Module
Clean Module

1. Equipped with 2 cleaning rollers to perform double-sided cleaning on the card.

Thermal Printing Module
Thermal Printing Module

1. Monochrome thermal printing modules with resolution of 300DPI, more modules can be added on requirements.

2. Image formats such as BMP, GIF, TIFF, PGN are available.

3. Capable of detecting color ribbon breakage; Color ribbon remaining quantity alarm function.

DOD Inkjet Module
DOD Inkjet Module

1. DOD inkjet module including 1 plasma unit , 1 DOD inkjet system, and 1 UV curing unit.

2. 1 more set of DOD module is extensible which makes double-sided speed up to 6000UPH.

3. Black/white monochrome inkjet is supported and YMCK color inkjet is optional, maximum resolution is up to 1200DPI.

4. Dual-side printing is supported. Single -sided printing speed is 6000UPH and double -sided printing speed is 3000UPH.

Laser Engraving Module
Laser Engraving Module

1. 20W fiber laser and extractor.

2. Equipped with 1 smoke purifier.

3. Characters (including Micro-text), bar codes, QR codes, machine readable codes, CLI/MLI, braille and high-quality gray images can be engraved on the front and back of the card with a resolution of maximum 1600DPI.

Embossing and Indenting Module
Embossing and Indenting Module

1. Support embossing and indenting character printing. Support indenting character printing on both sides

2. Character Plate Capacity: up to 120 characters.

3. The Character nails complies with the ISO standard for international credit card specific characters.

4. Capable of detecting indenting character color ribbon breakage; indenting character Color ribbon remaining quantity alarm function.


Topping Module
Topping Module

1. Golden and silver topping are supported.

2. Ribbon breakage and margin detection can be executed.

QC Module
QC Module

1. Configure one contactless verification module to perform contactless IC verification on the card;

2. Configure 1 set of PIOTEC contactless reader,Model: PT1301N, supports multiple protocols such as ISO14443A/B, MIFARE, ISO/IEC 15693, Felica, etc.

Output Module
Output Module

1. Equipped with 2 sets of card output magazine, with a maximum capacity of 500 cards per magazine.

Advantages of FPL300 Banking Card Flexible Perso Liner

Why
Flexible Configuration
Flexible Configuration
Flexible Configuration
Flexible Configuration

Based on modular design, FPL3000 can be configured as required, which makes the machine delivery as quick as possible.

Mature Technology
Mature Technology
Mature Technology
Mature Technology

Adopting mature personalization technology proven by the market for more than 10 years, ensures the machine's efficient and stable running.

Compact and Efficient
Compact and Efficient
Compact and Efficient
Compact and Efficient

Compact and more reasonable design occupies a smaller area and maintenance easier. For the same area, more modules can be equipped into machine, which makes

higher throughput.
