The LBC500 Fiber Laser Obstacle Remover adopts a high-energy laser beam, which can be used for remote operations such as grid clearance and blasting project ignition. Moreover, this type of laser obstacle remover can be applied to many fields such as military and civil use.
The overall control of the LBC500 is concentrated on a tablet computer, which can set the target point and adjust the laser power.

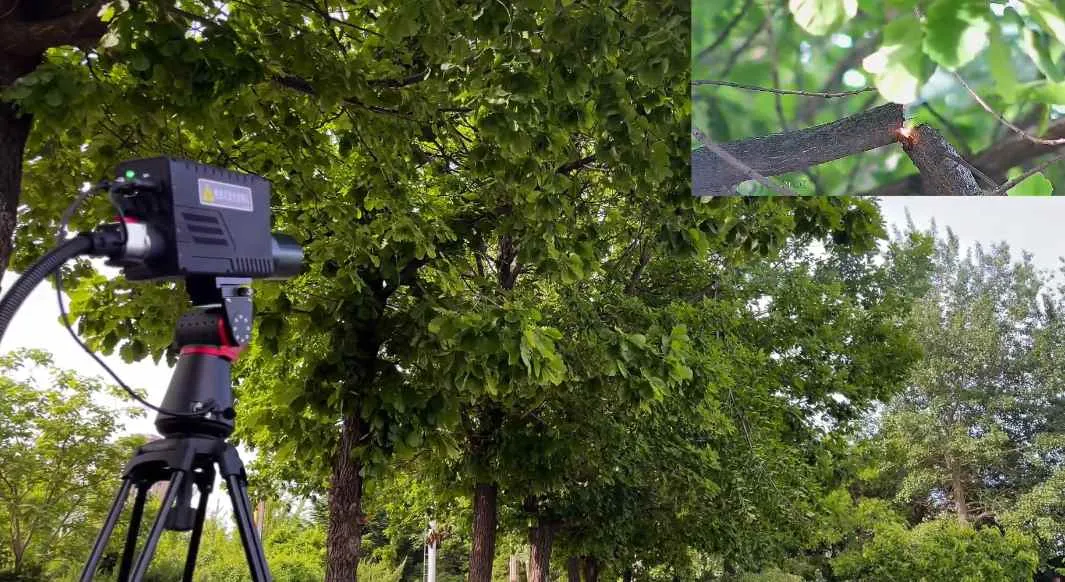

LBC500 can aim at the target at a long distance. This type of laser cleaning tool uses a precision steering pan/tilt to precisely control the direction of the pan/tilt.
Through a special optical system, laser obstacle remover uses high energy and high heat to break down the target, to remove faulty objects or leave marks.
| Host weight | ≤13.5kg |
| Host size | 380×340×150mm |
| Length of fibre-optical cable | ≥2m can be customized (Customizable) |
| Power output voltage | 48V |
| Laser output powe | 500W |
| Clear time | ≤600S (Take a typical foreign body 120 meters away and 10 cm wide as a reference) |
| The furthest obstacle clearing distance | 240 meters |
| Communication method | WIFI |
| Cooling method | Air cooled |
| Focus spot size | ≤6mm @100m |
| Action light peak wavelength | 1080±3nm |
| Rotation angle of Pan/Tilt/Zoom motion system | Horizontal 360°; Vertical 360; Accuracy 0.625 arc seconds |
| Telescope zoom | 1x-500x adjustable zoom |
| Zoom mode | Electric mode controlled by software |
| Targeted Video Image Resolution | 1920*1080 pixels |
| Operating temperature | －15℃～＋50℃ |
| Operating humidity | 10％RH～90％RH |
| Storage temperature | -5℃～70℃ |
| Altitude | 4000m and belowed altitude |
| Security function | Tip-over protection |
| Biometric security features | |
| Peripheral equipment security protection function | |
| Night vision | |
| Authorization control function |
Equipped with a set of 500W laser.
Main host weight 13.5kg.
Host size 380*340*150mm.
Equipped with 1 set of Emitter.
Equipped with a set of electronic telescopic aiming system, which can be electrically adjusted to zoom and focus.
Equipped with 1 set of recording system, which can record and take pictures of remote targets, and has the function of recording the whole process.
In the aimable state, the aiming time of any target within the azimuth is ≤ 60 seconds.
Equipped with a high-precision electronically controlled steering system for precise aiming.
Built-in WIFI module, which can be controlled wirelessly.
Equipped with 2 sets of portable ternary lithium batteries, the weight of a single .
Battery is 13.5kg, and the working time at full load is ≥ 90 minutes.
Equipped 1 tablet PC.
Equipped with a set of obstacle removal system control software to realize the function of automatic cutting at fixed points for small floating objects.
This lightweight, compact portable laser obstacle remover can be easily carried by a single soldier, making it ideal for field operations.
With stable and quick target positioning, the laser obstacle remover achieves an aiming time of 60 seconds or less, featuring an exceptionally small light spot size and rapid penetration speed.
The LBC500 fiber laser obstacle remover has dump protection, biometric security protection, peripheral device security protection, authorization control, night vision, and GPS positioning functions.
The Fiber laser has low power consumption, long service life, and maintenance-free.
