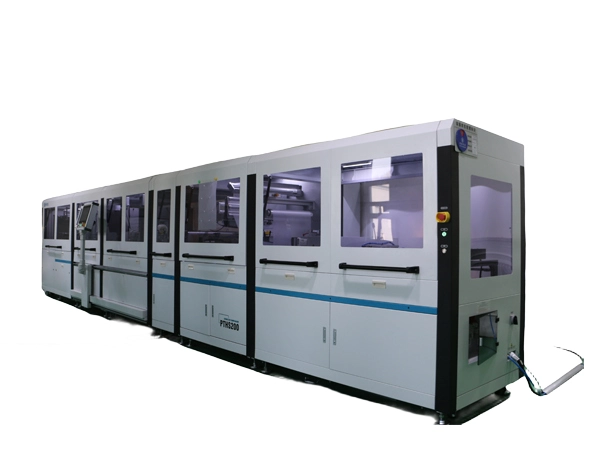

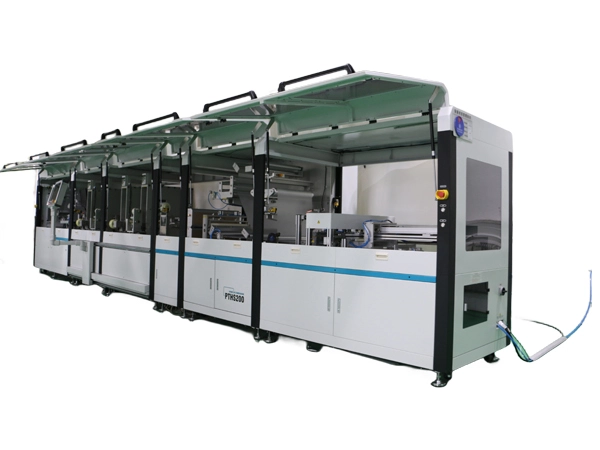

PTHS200 Automatic Hot Stamping Machine

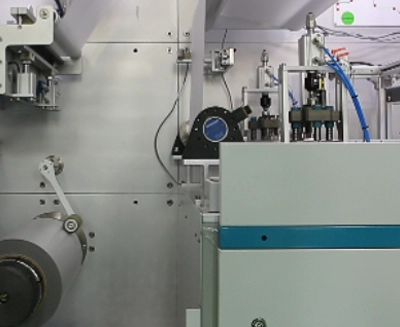

1.Configure air expansion shaft and fast locking mechanism, can provide convenient installation and disassembly of the material roll;

2.Material replacement time is less than 2 minutes. Equipped with 1 set of material rolls;

3. At the end of the current roll production, connect the film of the backup roll with the tail of the current roll through the material receiving platform to achieve continuous production;

4. The connect material platform is equipped with 2 sets of cylinder driven pressure plates, which press the joints of the two rolls of material and use tape to connect the two rolls of film together;

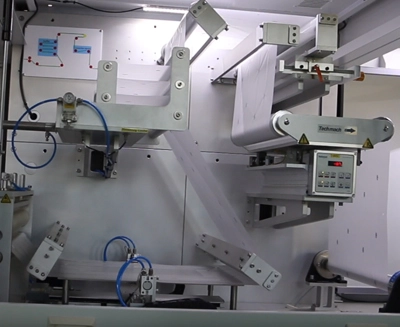

1. To ensure that the material is always straightened during the transportation process and works in conjunction with the rectify system, the film must always maintain a certain tension;

2. The tension is controlled by adding a pressure regulating valve to a low friction cylinder;

3. Due to the fact that both the hot stamping section and the cutting section require a film step by step walking method, and the action rhythm does not match each other, the film must have a certain amount of buffering. A set of tension module must be configured before the cutting traction and before the hot stamping traction; The maximum cache size is 330mm;

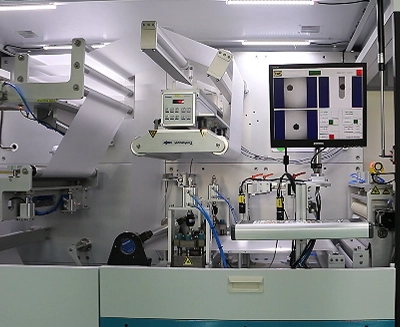

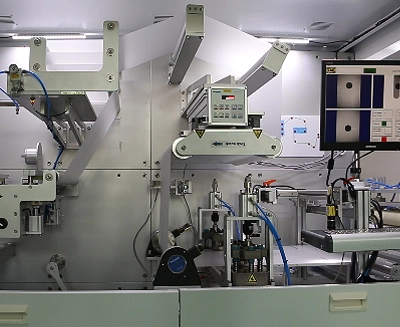

1. To ensure the accuracy of the vertical feeding direction during material operation, a set of traveling deviation rectify system is equipped behind the tension module;

2. Use ultrasonic sensors to detect the offset of semi transparent film materials.

1. Punch two circular positioning holes with a diameter of 6mm;

2.To adapt to the differences in the positioning hole positions of different batches of products, the punching module can be adjusted in the Y direction, with an adjustment range of ± 20mm. To ensure adjustment accuracy, a standard slide table with a micrometer is used;

3. Connect an industrial vacuum cleaner below the punching module to remove the waste material from the punching process.

1. Punch two circular positioning holes with a diameter of 6mm;

2.To adapt to the differences in the positioning hole positions of different batches of products, the punching module can be adjusted in the Y direction, with an adjustment range of ± 20mm. To ensure adjustment accuracy, a standard slide table with a micrometer is used;

3. Connect an industrial vacuum cleaner below the punching module to remove the waste material from the punching process.

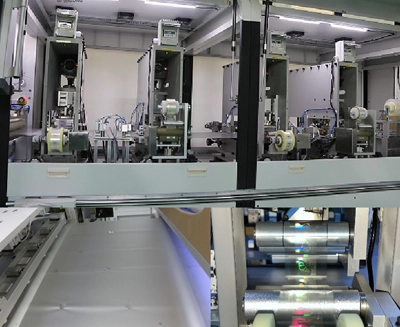

1.Configures 4 individual adjustable hot stamping heads;

2.The hot stamping heads can be adjustable in X/Y direction to meet the hot stamping requirements of different positions within a certain rang.

Clean the debris on the material after hot stamping.

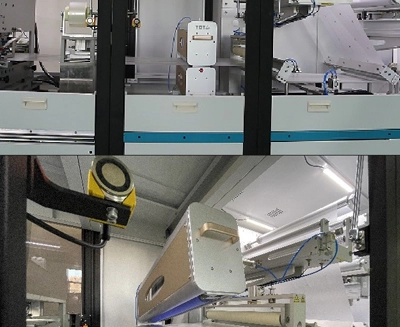

1. Used for the transfer of film materials for hot stamping and cleaning module;

2. Using a servo motor and screw module to drive the gripper to move the film forward, the stroke is matched with the distance between the hot stamping heads, and a 330mm long finished sheet material is transported in two forward movements of 180+150mm;

3. The opening and closing of the gripper are controlled by the cylinder.

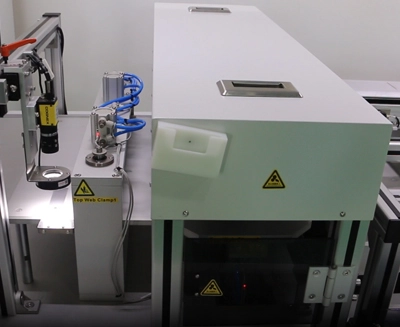

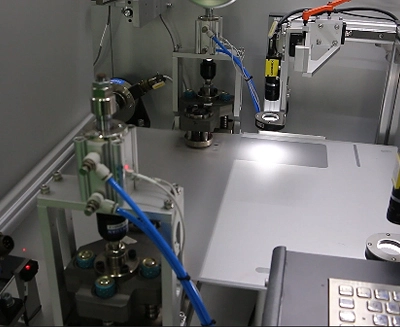

1.Configures a visual recognition system to accurately identify the position of the hole;

2.Install one set of cameras to identify the positions of the two holes respectively to ensure accurate die-cutting.

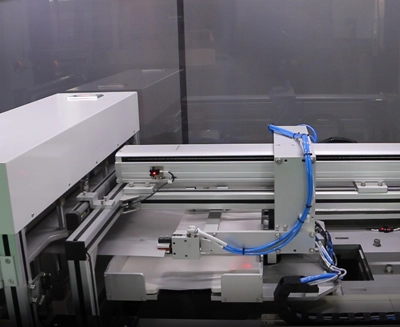

1. Cut the size of the material, with a standard cutting size of 500 * 330 * 0.05mm, and the size can be flexibly set according to customer needs;

2. The reciprocating motion is driven by a stepper motor and a synchronous belt, and the customized cutter can quickly cut off materials;

3. The cutting blade is equipped with pressure plates driven by cylinders on both sides, which press the film down before cutting.

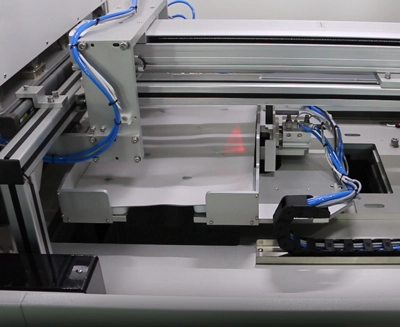

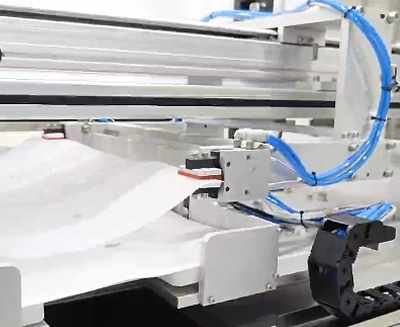

1.Used for the transportation of thin film materials;

2. Using a servo motor and screw module to drive the gripper to move the film forward, pull the film strip to be cut from the left side of the cutter to the right side, and relay with the receiving gripper;

3. The opening and closing of the gripper are controlled by a cylinde.

1.Store finished materials, the size is 500*330*0.05mm.

2. After the quantity of materials received reaches 300 sheets, the production personnel need to be notified to receive the materials temporarily;

3. To ensure that the pieces of material falling into the card receiving box are neat, there is a positioning clamp inside the box to organize the materials. The action of the clamp can be achieved through a cylinder or motor;

4.At the beginning of production and when changing the material roll, there will be a section of film that cannot be hot stamped due to not meeting the correction requirements, and this part of the film needs to be discarded;

5. The teject box is located below the output magazine, and the output magazine above moves backwards to avoid waste collection;
